Simple.Rugged.Efficient
SINAMICS V20 -The perfect solution for basic applications
Simple
- Easy Installation – Both variants can be mounted side by side and can be pushed through or mounted on the wall.
- Numerous choices, including straightforward commissioning, diagnostics, and service through local and mobile operator panels
- Simple Handling – Cloning and parameter readout without a power source
Rugged
- Coated electronics boards, improved cooling, and a wider voltage range increase the converter’s resilience in harsh climatic circumstances
- Consistent performance in challenging line supply circumstances
- Temperature range for operation and surroundings: -10°C to 60°C
Efficient
- ECO mode for U/F and U2/f; idle state hibernation mode
- Water flow and energy monitoring combined
- For frame size FSE, high overload capacity (HO) and low overload capacity (LO)

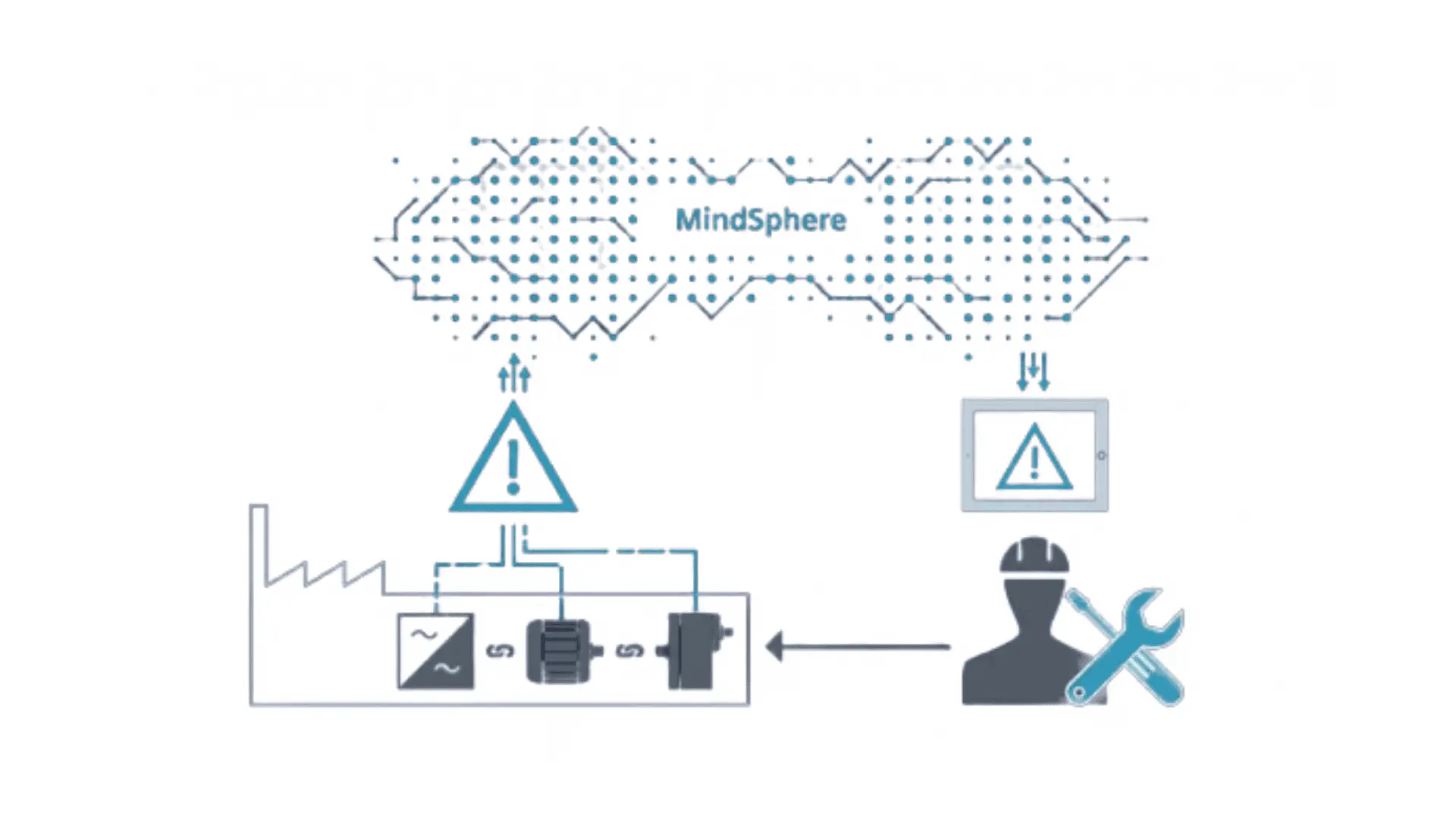

SINAMICS V20 meets the requirements of digitalization
Drives are what make things happen, whether in the manufacturing or processing sectors. And in terms of digitalization, drive systems are the ideal location to start. To maintain your competitiveness, low-voltage converter and motor data are essential.
A straightforward plug-and-play method for connecting SINAMICS low-voltage converters straight to the cloud is offered by the SINAMICS CONNECT 300 IoT gateway. Without requiring any modifications to hardware or software, it connects a SINAMICS V20 to Insights Hub. Up to 8 drives can be connected at once.
Mobile. Clever. Faster.
Your mobile devices (smartphone, tablet, and laptop) can be wirelessly connected to the SINAMICS V20 converter series through the use of the SINAMICS V20 Smart Access Module. This gives you a versatile, highly effective tool for wireless commissioning, diagnostics, and servicing.
Accessories for your SINAMICS V20

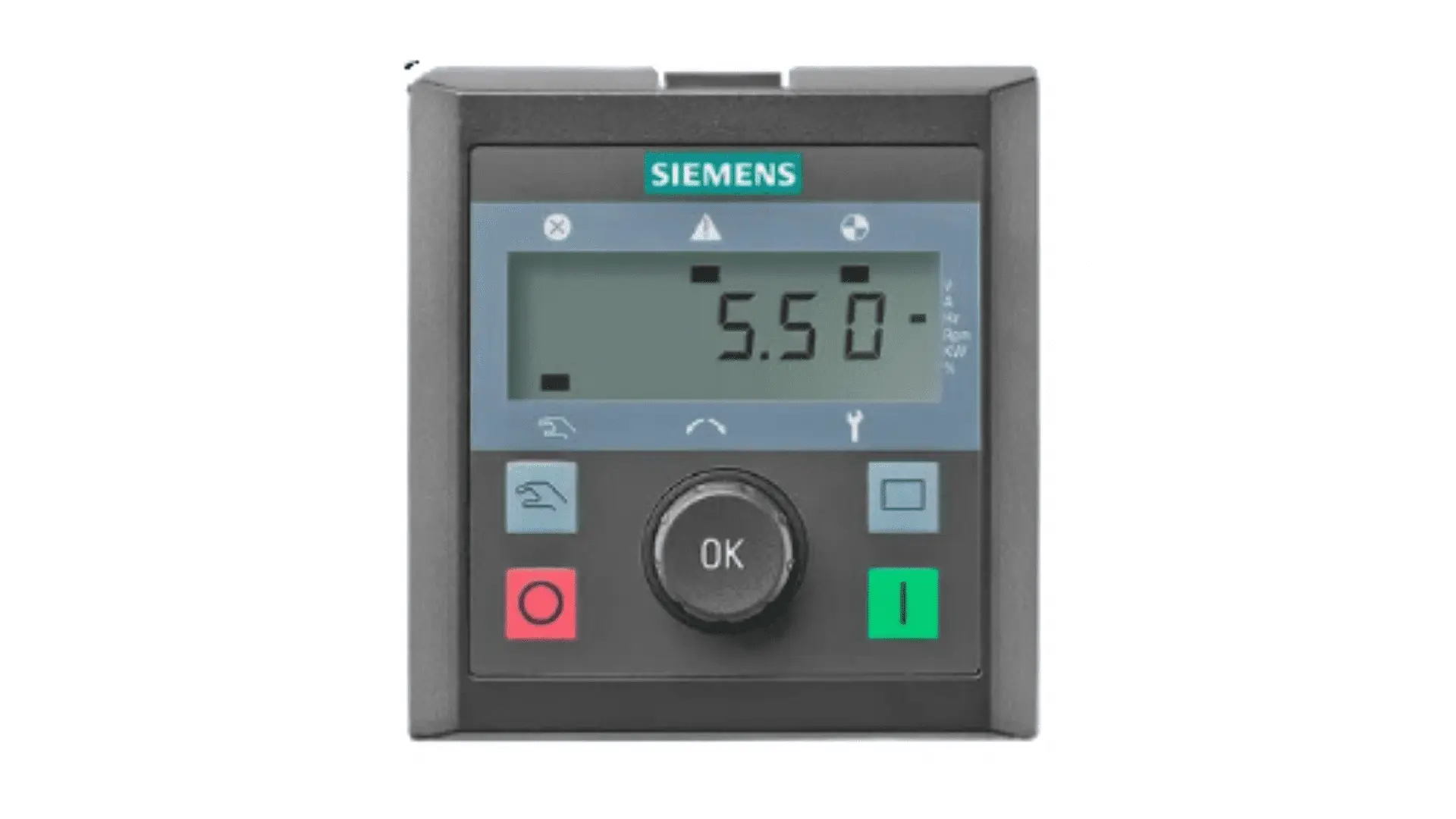

Basic Operator Panel BOP
rudimentary operator panel for connecting the converter directly
Local commissioning of the SINAMICS V20 converters is facilitated by the BOP Basic Operator Panel’s menu-based operation.

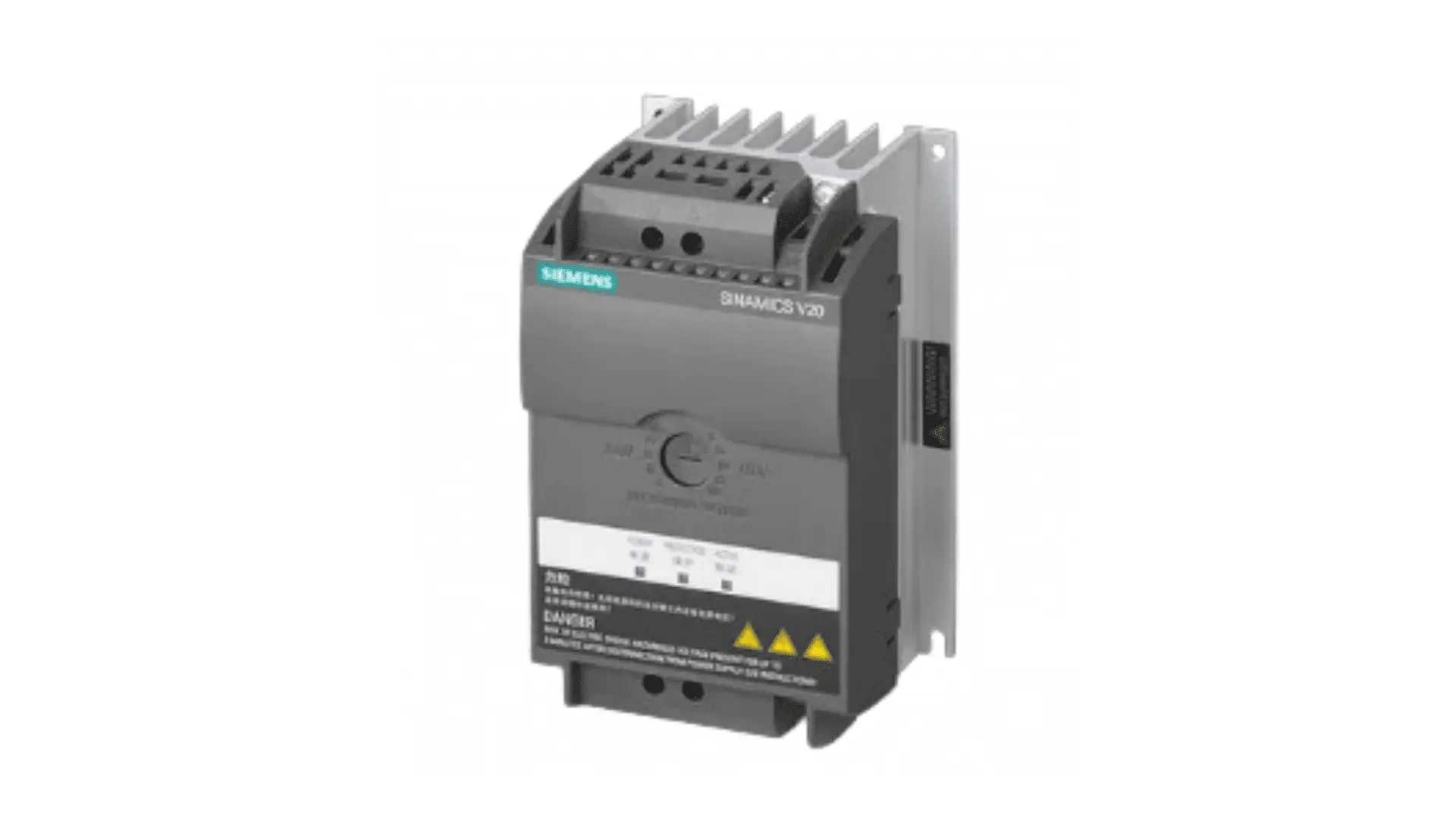

Braking module
- Shortens the deceleration ramp time
- Suitable for 230 V 1 AC and 400 V 3 AC
- Adjustable duty cycle from 5% to 100%
- The frame sizes FSD and FSE already have an integrated braking unit
Smart Access Module
Web-based operator panel with wireless client connection
The optional SINAMICS V20 Smart Access Module can be simply plugged onto the converter. Handling of the SINAMICS V20 frequency converter becomes even easier and more user-friendly since it can be commissioned and operated via smartphone, tablet or laptop.
Functions

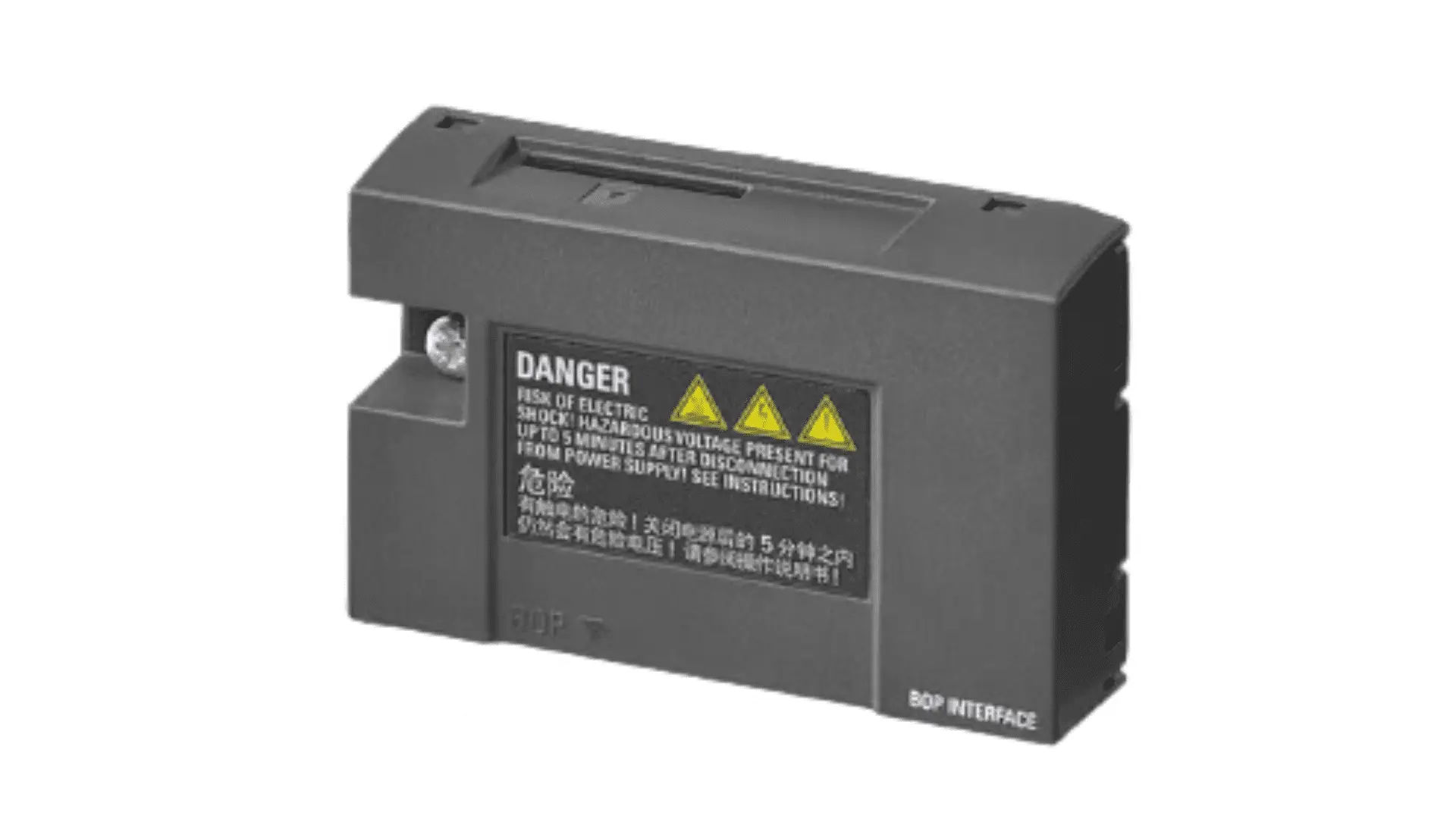

BOP Interface
- Connection between converter and BOP Basic Operator Panel
- RJ45 interface is compatible with standard network cable

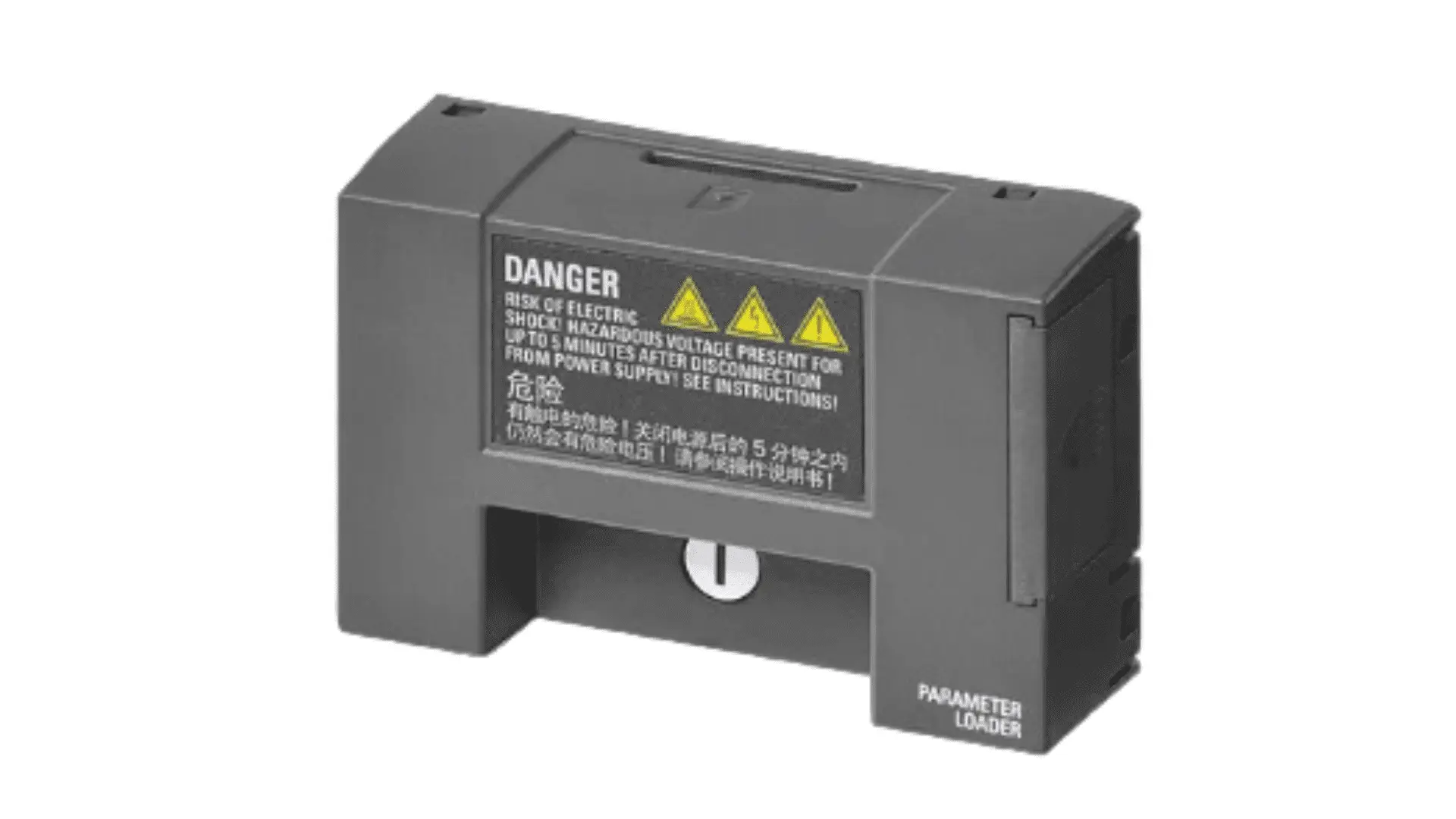

The Parameter Loader
Even when the converter is not receiving power, parameter settings can be saved and loaded again using an SD card or MMC card and the battery-operated parameter loader. This also makes it possible to load the most recent firmware.

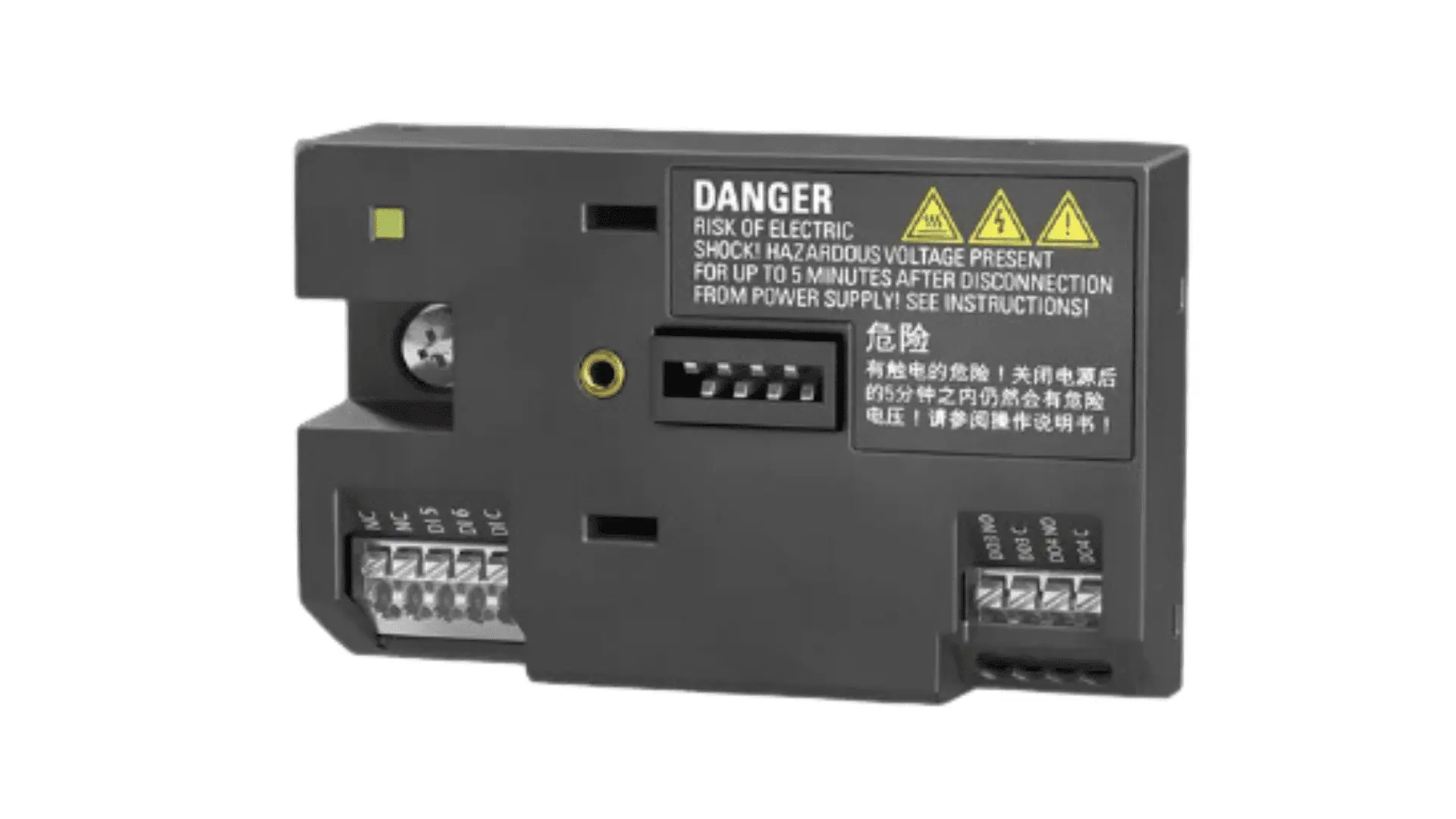

The I/O expansion module for SINAMICS V20
With the I/O expansion module, the SINAMICS V20, 400 V converter can have more inputs and outputs.
Two more digital inputs and two relay outputs are provided by the module, which is easily placed on the converter. As a result, the following inputs and outputs are accessible:
- 2 analog inputs
- 4 digital outputs

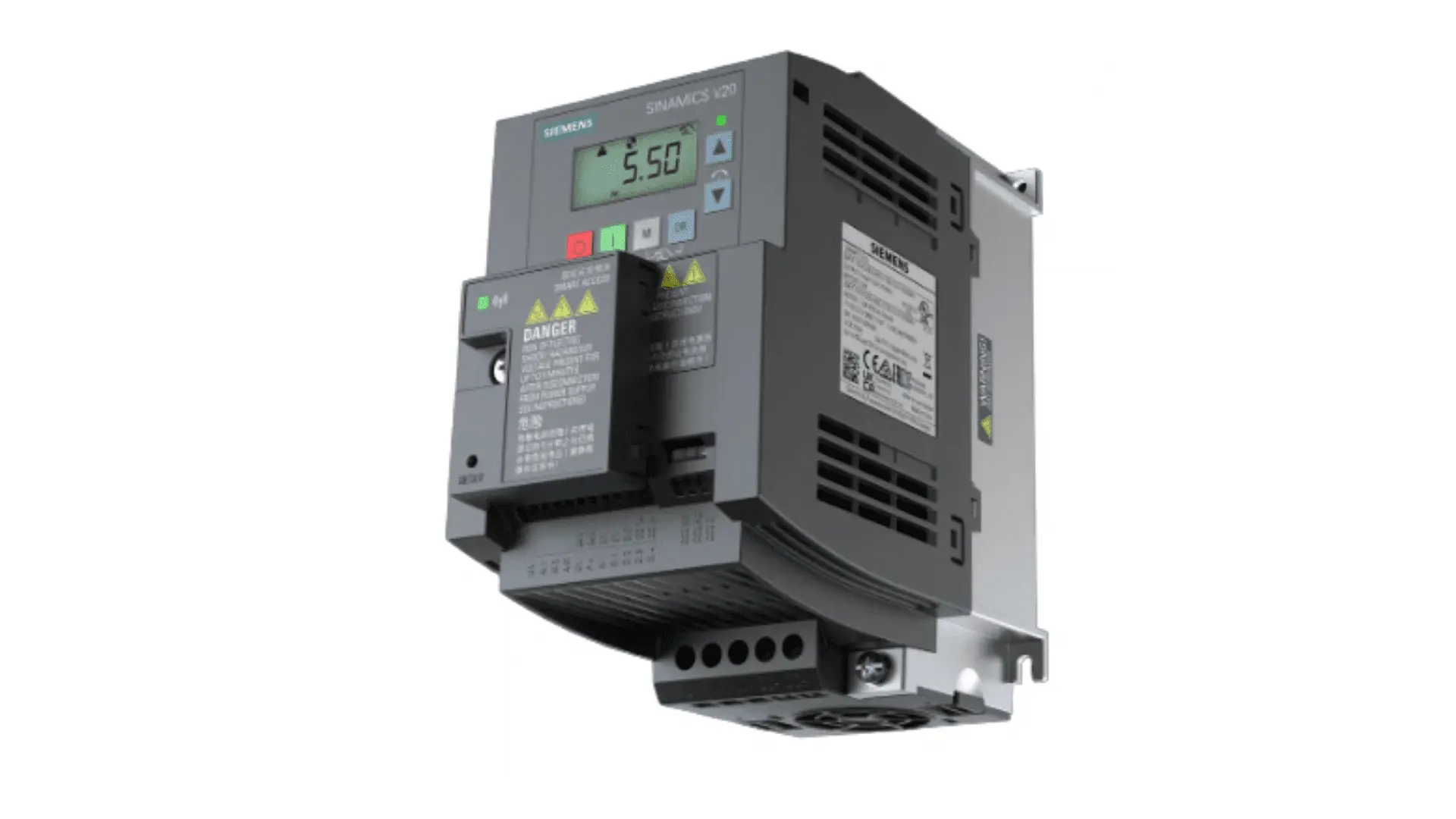

SINAMICS V20 – The converter for your individual applications
1. Pumping / ventilating / compressing
SINAMICS is the drive for pumping, ventilating, and compressing.
2. Moving
SINAMICS is the drive for simple as well as highly dynamic conveyor systems.
3. Processing
SINAMICS is the drive for continuous processes with high speed and torque accuracy.
