the converters for medium and high power ratings

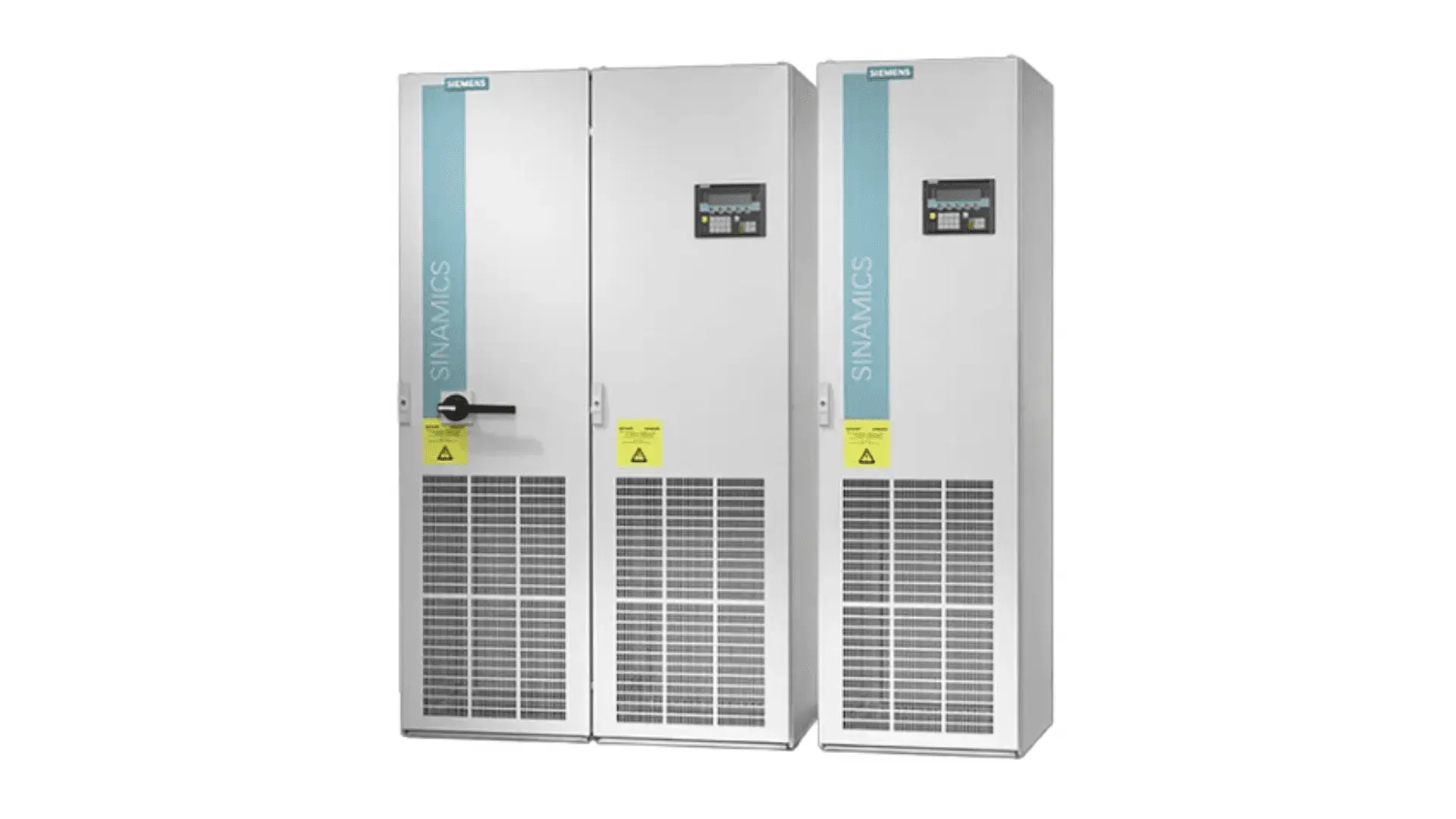

For many years, the SINAMICS G130 and G150 built-in and cabinet units have demonstrated their worth in industrial settings. Their resilience, broad application range, and provided application flexibility are their primary features. These devices blend in perfectly with any contemporary digital setting because of their full TIA Portal integration and current connection.

Benefits and typical applications of SINAMICS G130 & G150

Flexible

• Numerous I/O expansion modules and further extensions
• Numerous possibilities for input and output power
• In accordance with NEMA and IEC requirements
• Three distinct voltage levels are offered for the product

User friendly

• Simple parameter adjustment and operation monitoring with the user-friendly AOP30 operator panel
• Software with intuitive wizards as a substitute for commissioning and parameter setting
• System engineering made simple and effective with the TIA site
• All modules should be as accessible as possible to provide the greatest possible service

Reliable

• Robust and well-established system behavior and design
• Maximum availability as a result of the power block design
• Ideal for demanding tasks
• Supports “Essential Service Mode” for emergency operations.

Ready for digitalisation

• Simple drive models for your simulation are provided by SINAMICS DriveSim Basic.
• Ultilise CAE/CAD data (EPLAN, 3D) to streamline the drive installation and planning process.
• Enable long-term monitoring using the Analyse MyDrives application in insights hub.
• Each product’s data matrix code provides simple access to technical information.

Typical applications

Anywhere bulk, liquid, or gaseous materials needs to be moved, transported, pumped, or compressed, variable-speed drives are a good choice. These applications essentially consist of:

• Pumps, fans, compressors
• Moving: Belt conveyors, ship’s drives
• Processing: Mills, mixers , kneaders, crushers, agitators, rotary furnaces, extruders
• Branch chemical industry
• Branch Oil & Gas
• Branch Water / Waste water

Technical data overview
