SIMOTICS M-1PH3 main motors

Outstanding higher-level performance attributes for the class of tiny machines. The SIMOTICS M-1PH3 main spindle motors have the appropriate power and cover enough speed ranges for the compact class. The motor functions as a powerful and dynamic main drive system with great performance when paired with the SINAMICS S120 drive system.

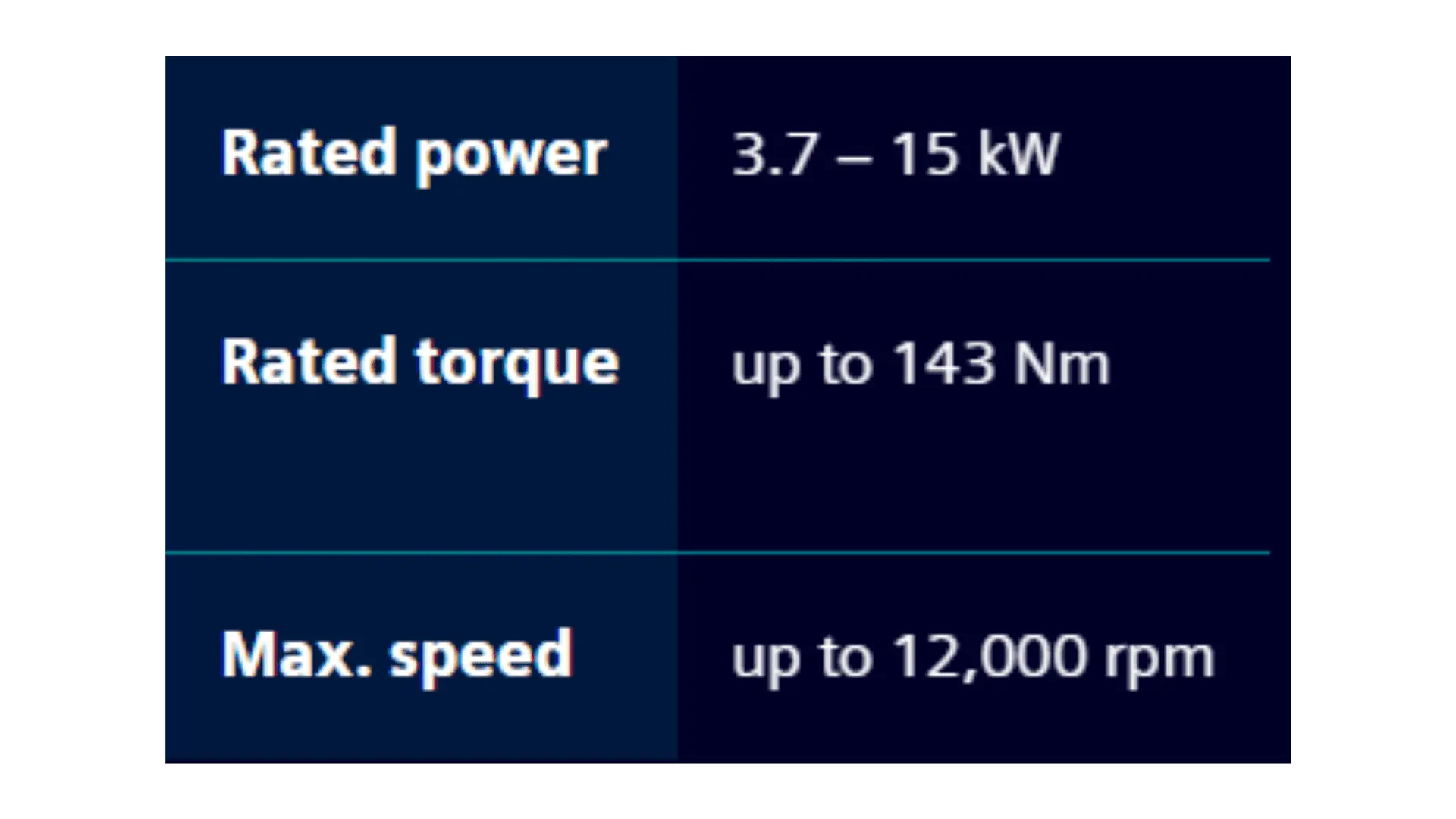

Overview of the product range

Compact squirrel-cage asynchronous motors with forced fan cooling, great resilience, and IP55 protection are features of SIMOTICS M-1PH3 motors. Appropriate encoder systems are available for the motors to sense the motor speed and indirect position, depending on the control requirements. An appealing way to quickly and simply start motors running is with the encoderless version.

System Overview

Features

  • Outstanding performance characteristics
  • Wide speed setting ranges
  • High precision with respect to speed, torque and positioning
  • Up to 2-fold overload capability
  • Safe operation using SINAMICS S120 Safety Integrated
  • High encoder resolution 22 Bit DQ-encoder
  • Simple and flexible connection system
  • Long-lasting motor bearings for high radial forces with belt drives
  • Commissioning with electronic rating plate and DRIVE-CLiQ interface

Typical applications

  • Main spindles for standard milling and turning machines
  • Driven tools for standard turning machines
