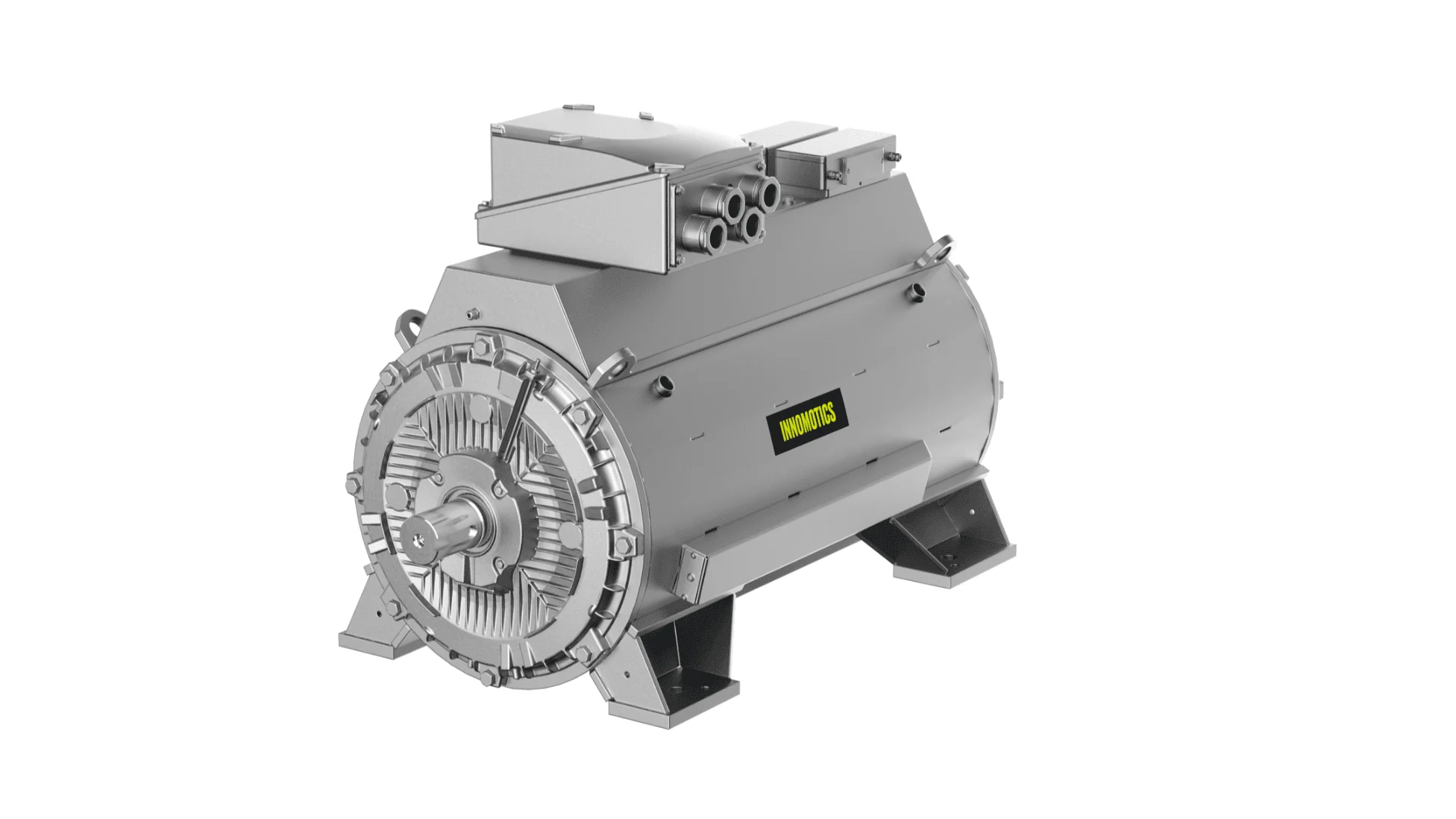

Innomotics HV C water-jacket-cooled high voltage motor

Since it is small in size, the Innomotics HV C water-jacket-cooled is ideal for situations where space is limited. It effectively blocks the motor from being exposed to unclean, hostile, and salted air while recovering and utilising the heat it dissipates. Smoother operation and longer service life are made possible by the design, which also decreases weight and noise and enhances vibrational behaviour.

Advantages

• Valuable space is freed up for applications where space is restricted, e.g. onboard ships and offshore platforms
• Completely insensitive with respect to pollution, chemicals and salt mist
• Improved energy efficiency of the complete plant or system
• Lower transport and installation costs
• Extremely long lifetime as a result of the optimized temperature distribution
• Further optimized work conditions as a result of the very quiet operation
• Extremely reliable with a long service life
• Optimized vibration behavior for extended plant and system lifetimes
• Minimized cabling costs
• Increased flexibility in plants and systems and simplified installation as a result of the variable terminal box position
• Maximum system transparency and higher productivity by integrating into digital system concepts

Features

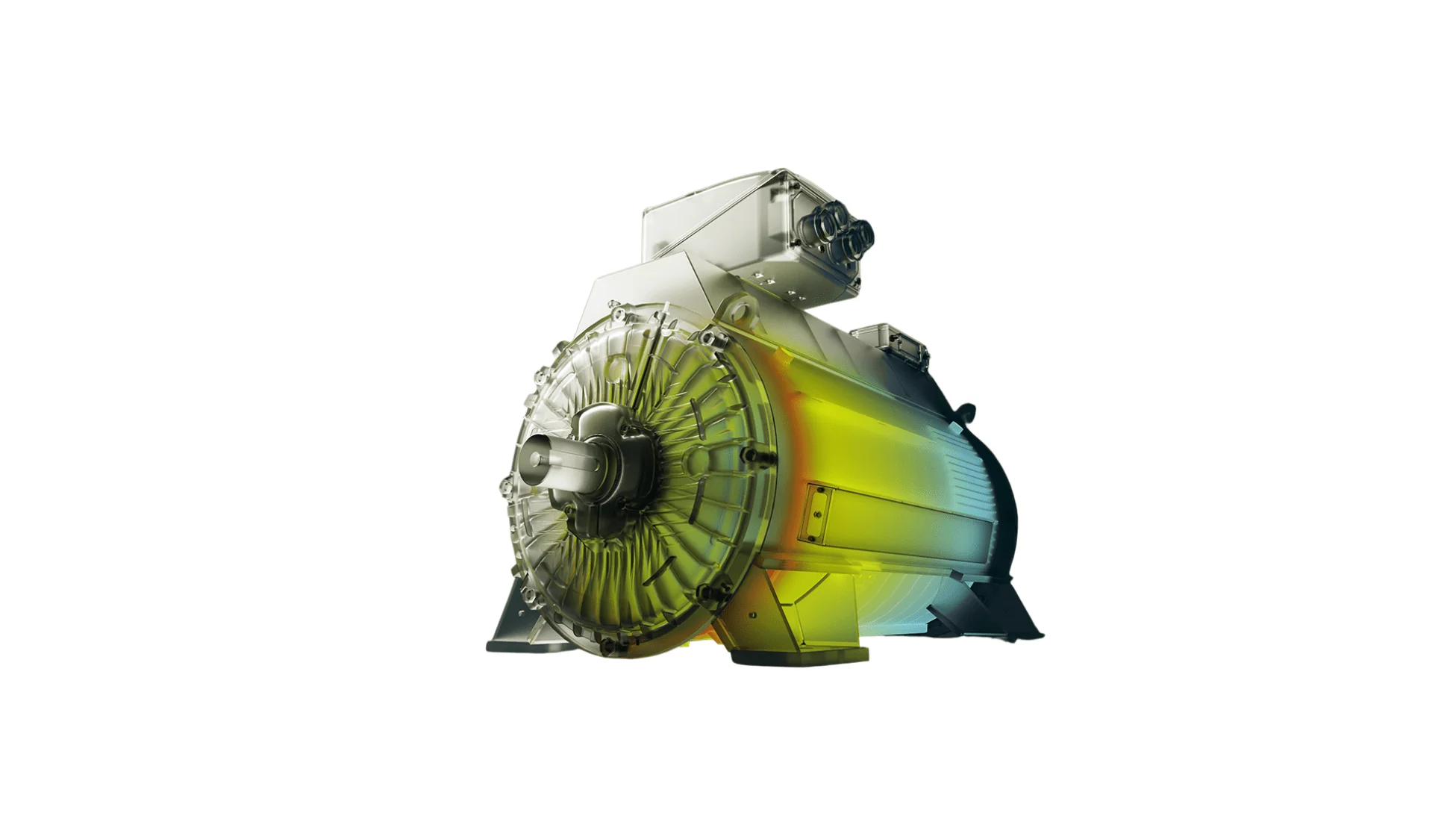

• Optimised cooling system for uniform and even cooling – where hotspots are reliably avoided
• Extremely high power density for a space-saving design
• Low weight
• Integrated cable routing
• Vibration-optimized mounting foot design
• Predestined for energy-saving converter operation as a result of the optimized cooling system
• Extremely low maintenance water jacket cooling system
• Data matrix code so that mobile devices can quickly and simply access individual motor data
• Condition data can be analyzed using digital service concepts, also cloud based

Technical data overview
