A quick summary of the advantages of low-voltage distribution networks

• Strong electrical distribution networks and cutting-edge parts from one supplier
• High degree of Safety for both personnel and equipment as a result of type-testing in compliance with IEC 61439
• Flexible installation is made possible by electrical power distribution systems’ modular design.
• Streamlined inventory management and easier assembly as a result of type-testing in compliance with IEC 61439
• Support for software boosts output across the value-added process

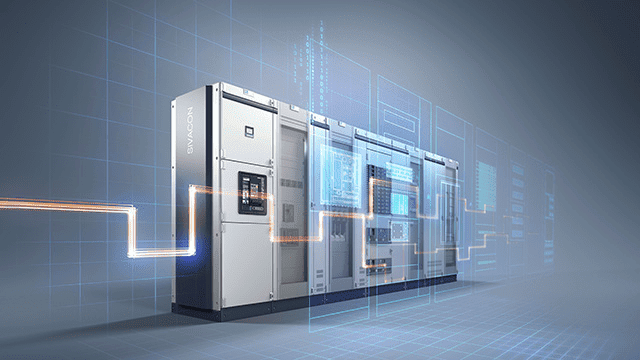

Alpha 3200 Eco power distribution system for modern power distribution

Siemens ALPHA 32000 eco power distribution systems is made to satisfy the demands of contemporary building infrastructure power distribution. A novel system idea and digital engineering save project time.

Conserving resources

• 30% less copper is used since the busbar is positioned in the middle.
• Transformer optimised up to 3.200 A ad 2.000 kVA

Realistic

Enhanced planning safety as a result of certifications related to 3D engineering applications

Modular

• High density of packing
• ALPHA assembly kits’ versatility allows for high usefulness in a compact space.

3WA Circuit breaker technology

• Breakers for air circuits 3WA sizes 0 through 2 and up to 3,200 A
• Various panel widths for a more comfortable connection or a smaller design

Universal mounting design 3VA

• Complete integration of the 630 A to 1,600 A 3VA moulded case circuit breaker

3WA bus coupler

• Coupling with 3WA air circuit breaker, size 1, 2,000 A

3NJ4 in-line fuse switch disconnector

• From NH00 to NH3 630 A
• Optionally with second NH00 in-line level

Cross-wring compartment

• Control wiring perfectly organized across panels

ALPHA 8GK installation technology

• Fully compatible with the installation kits for the ALPHA distribution board
• Panel width up to 1,100 mm

Transformer measurement

• Tested function module in accordance with IEC 61439 with 3NPI fuse switch disconnector and 3KD switch disconnector

Dependable power source for low-voltage distribution systems and failsafe building management

A dependable power supply based on low-voltage distribution systems is the cornerstone of effective building management. The design of power distribution systems is becoming more complicated as renewables energy sources and building automation increases. The intricacy is increased by the numerous standards-imposed criteria for energy efficiency and safe system operation. The best option for completely safe and effective power distribution is our array of distribution boards, power distribution systems, cutting-edge parts, and auxiliary software tools.

SIVACON S4 CERTIFICATE
