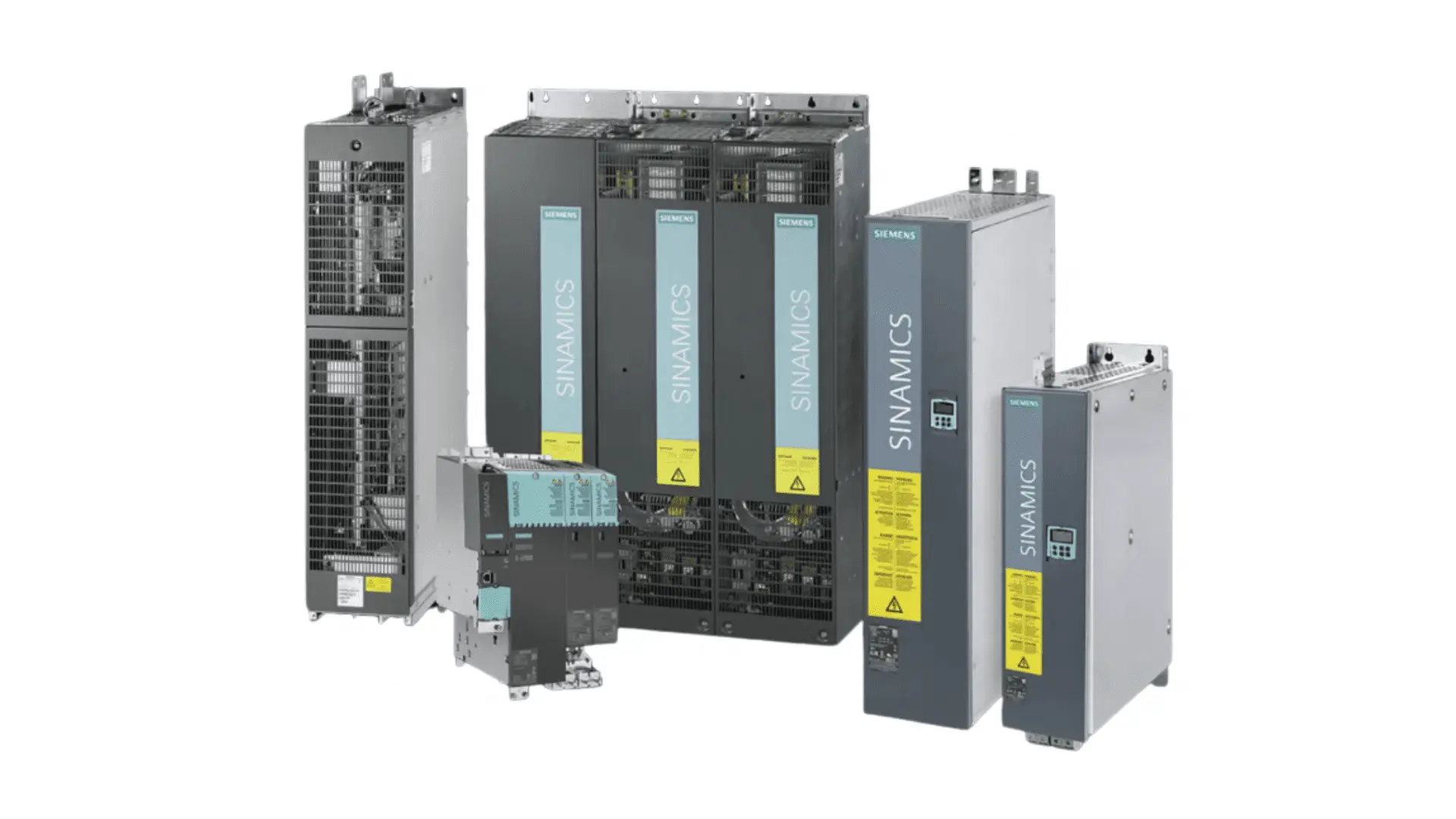

Use in Industry
![E](https://b3355109.smushcdn.com/3355109/wp-content/uploads/2024/07/E-44.png?lossy=2&strip=1&webp=1)
Maximum productivity, energy efficiency, and component reliability are the main priorities in the industry. Power systems become more unstable. Storage systems can be integrated into the drive line-up thanks to DC-DC converters. When necessary, regenerative energy can be temporarily stored for use in the process or given to the drive line-up in the event of a power outage or peak load demand.

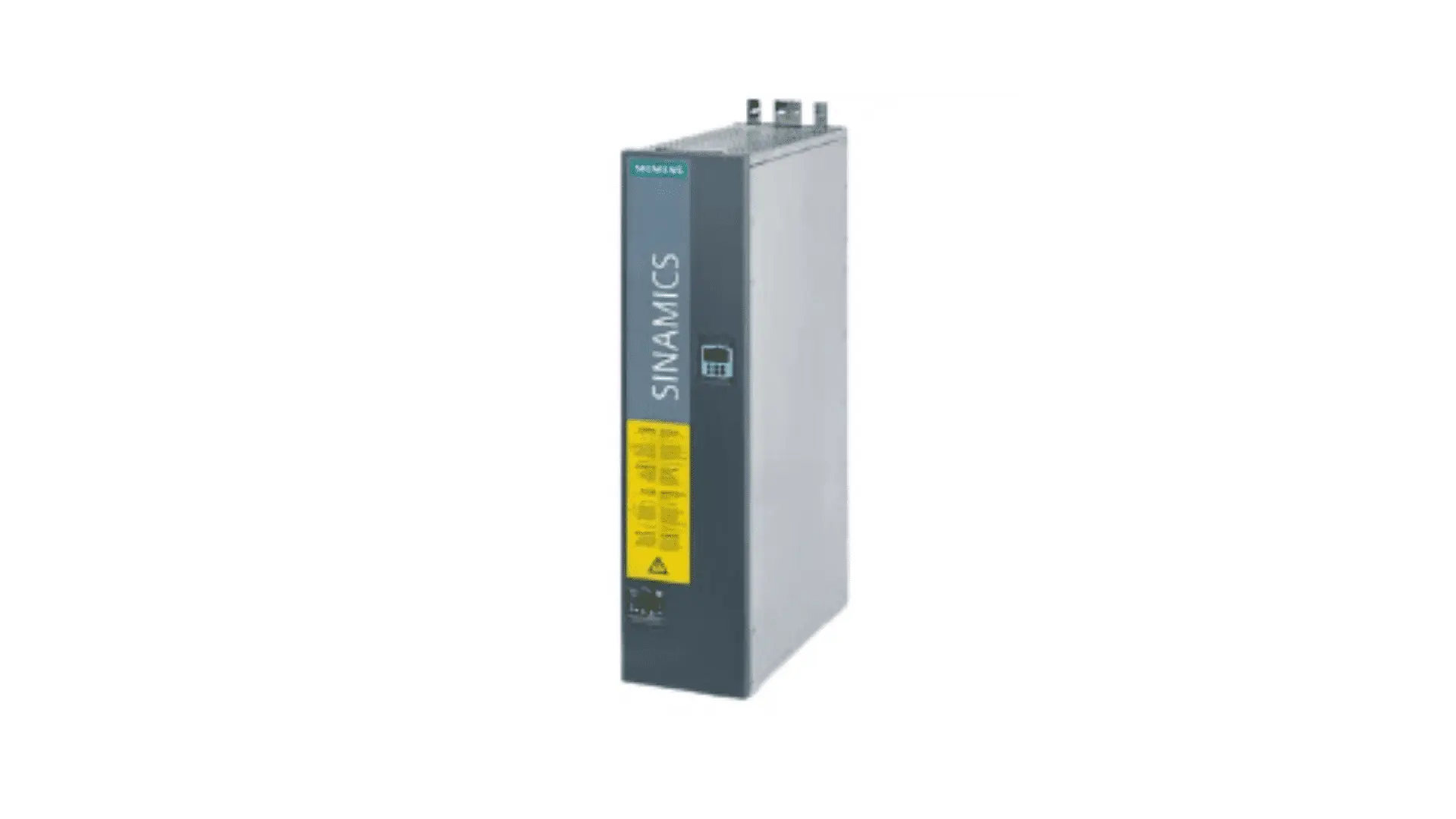

The brand-new SINAMICS DCP 250kW converter!
![E (2)](https://b3355109.smushcdn.com/3355109/wp-content/uploads/2024/07/E-2-38.png?lossy=2&strip=1&webp=1)
The SINAMICS DCP 250 kW compact DC-DC converter is currently available. This indicates that an industrial drive train can be connected to batteries or ultra caps using a total of three Compact DC-DC converters. The continuous operating range of the SINAMICS DCP 250 kW is 0….1200 VDC, and it provides a constant current from 250A to 1000 VDC.
Advantages with the large selection of SINAMICS DC-DC Convertors, you can always find a solution that is specifically tailored to your needs, regardless of the application power need or style of application.
Reliable
- Design of the DC/DC controllers for usage in industrial applications
- Robust technology thanks to many years of expertise
- High reliability and maximum operational safety due to exceptional product and manufacturing quality
![e (1)](https://b3355109.smushcdn.com/3355109/wp-content/uploads/2024/05/e-1-31.png?lossy=2&strip=1&webp=1)
Combinable
- Easy coupling to the SINAMICS S120 link thanks to the same tool usage
- Easy interaction with other SINAMICS S120 components
![e (4)](https://b3355109.smushcdn.com/3355109/wp-content/uploads/2024/05/e-4-15.png?lossy=2&strip=1&webp=1)
Versatile
- Usage of compact or engineered DC-DC converter depending on requirements
- Coupling of batteries or ultra caps in a drive system
- Simpler connection due to the wide range of communication interfaces
- Suitable device selection for the specific application, e.g. in test stand technology
![e (1)](https://b3355109.smushcdn.com/3355109/wp-content/uploads/2024/05/e-1-44.png?lossy=2&strip=1&webp=1)

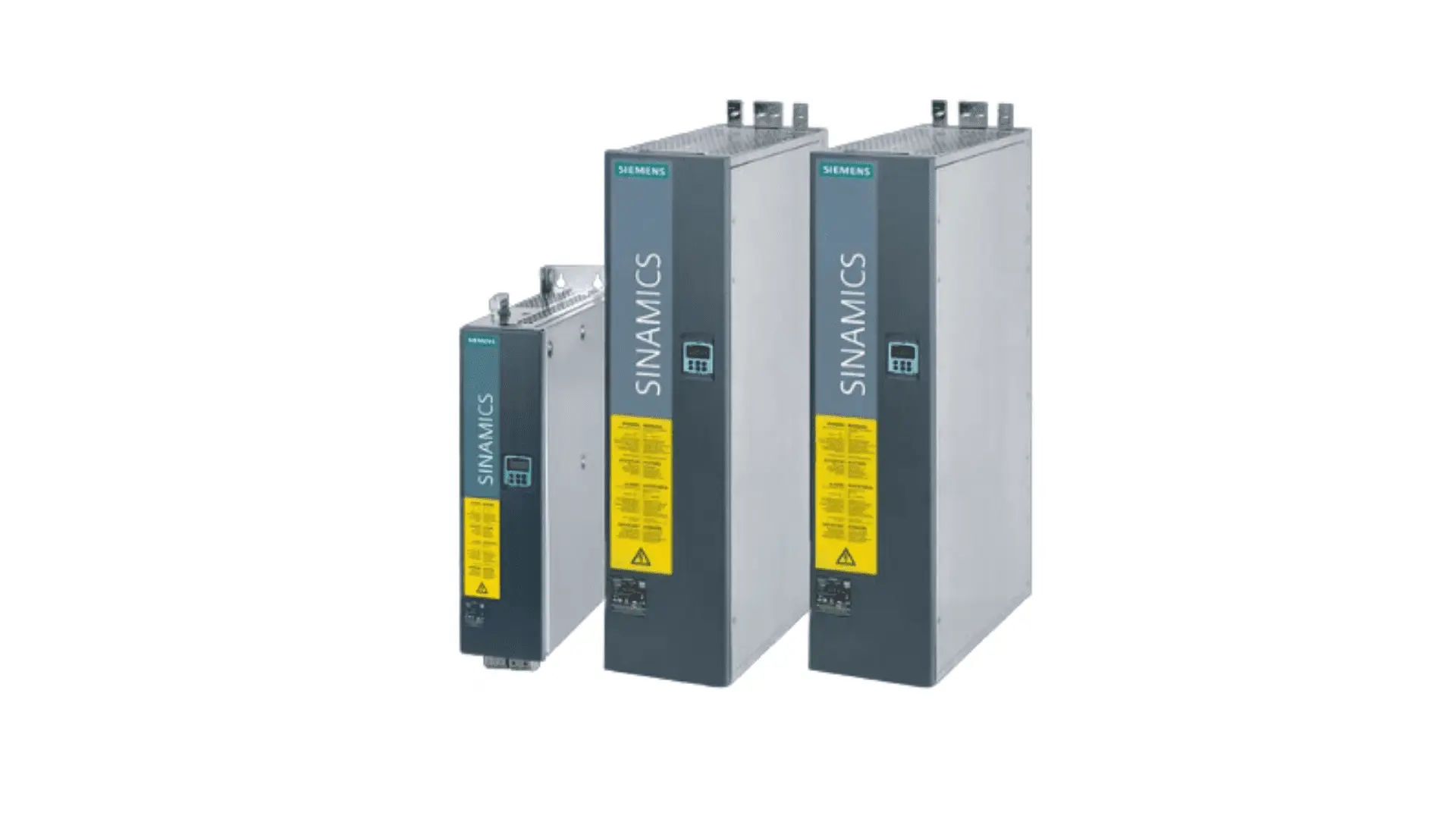

Compact DC-DC converter
Does the control cabinet need to have room for you? All the parts of a DC-DC converter are included in a single, small device with the Sinamics DCP (DC power convertor) Product line.
![E (3)](https://b3355109.smushcdn.com/3355109/wp-content/uploads/2024/07/E-3-26.png?lossy=2&strip=1&webp=1)
Equipment that is ready to use
With no further engineering needed, the SINAMICS DCP compact DC-DC convertor is ready for use right away. It is also simple to create a power extension by connecting multiple SINAMICS DCPs in tandem.
Uniting the two realms
The SINAMICS DCP can connect two separate DC voltage systems at various voltage levels for simple energy exchange because it is a buck and boost converter as a result, installation space is spared and fewer components are needed.
Suitable for the future
Siemens have a device that can achieve output voltages of up to 1200V, the SINAMICS DCP250kW. The apparatus complies with the stricter regulations imposed by the automotive sector and provides the best foundation for the construction of electric vehicle test stands.
Increase energy efficiency to lessen your carbon Impact
Resource utilization needs to be completely rethought and revolutionized as climate change gets worse. Because of this, the goals of tiny DC-DC converters are dependability, energy efficiency, and maximum productivity.
![E (4)](https://b3355109.smushcdn.com/3355109/wp-content/uploads/2024/07/E-4-13.png?lossy=2&strip=1&webp=1)
Reducing greenhouse gas emissions and improving energy efficiency need the integration of renewable energy sources and energy storage.
The SINAMICS DCP is an exceptional solution because of its technology, which drastically lowers peak energy loads and can save up to 70% on fuel usage. In electric drive unit test systems, the SINAMICS DCP optimizes power supply to car inverters by acting as a buck and boost converter in automotive test stands.
Energy storage integration is essential for industries looking to increase energy efficiency. Because of this, SINAMICS DCP provides a revolutionary solution that precisely satisfies the needs of contemporary aiming for more energy and sustainably-efficient-procedures.

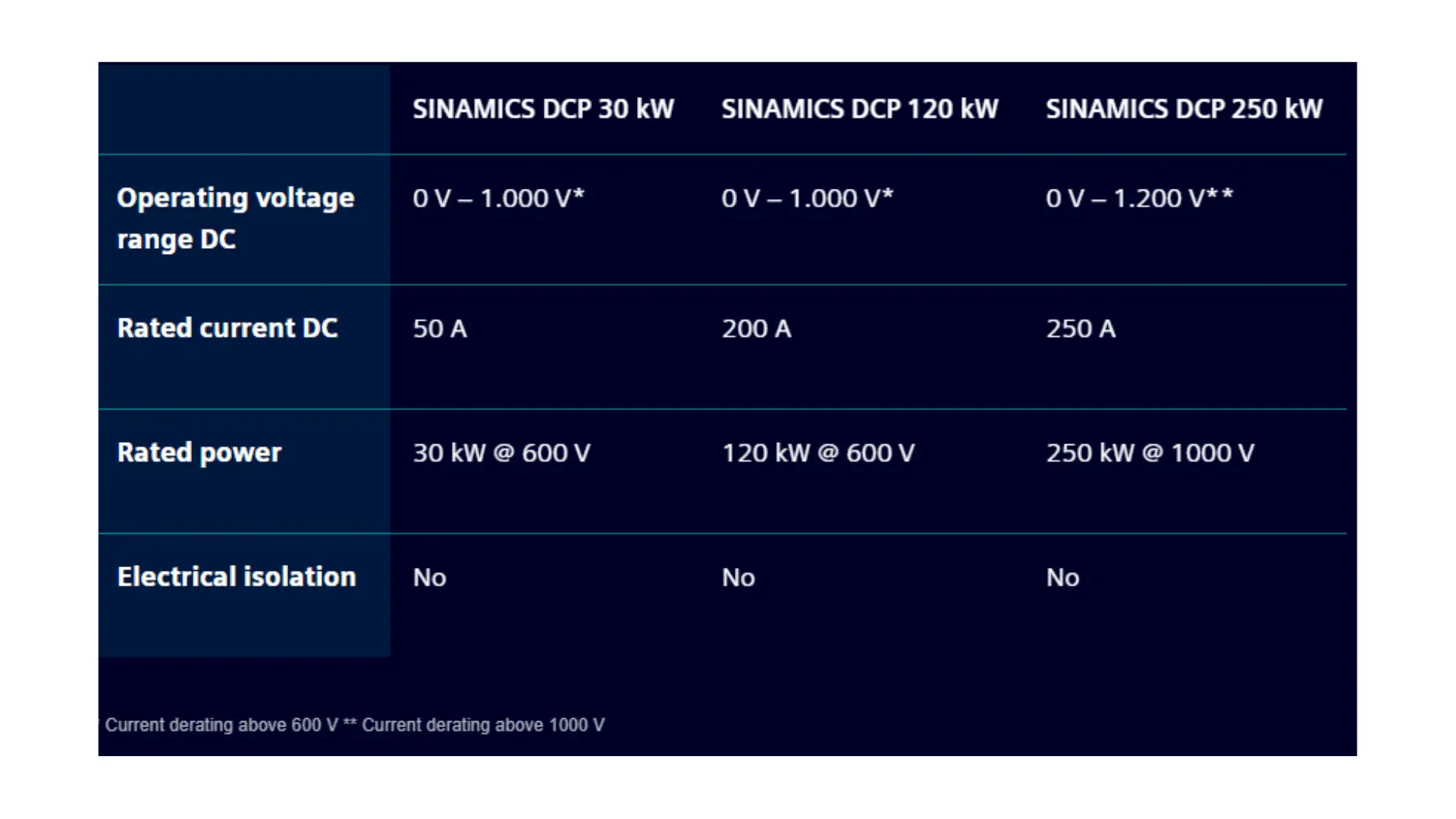

Technology overview
![E](https://b3355109.smushcdn.com/3355109/wp-content/uploads/2024/07/E-45.png?lossy=2&strip=1&webp=1)

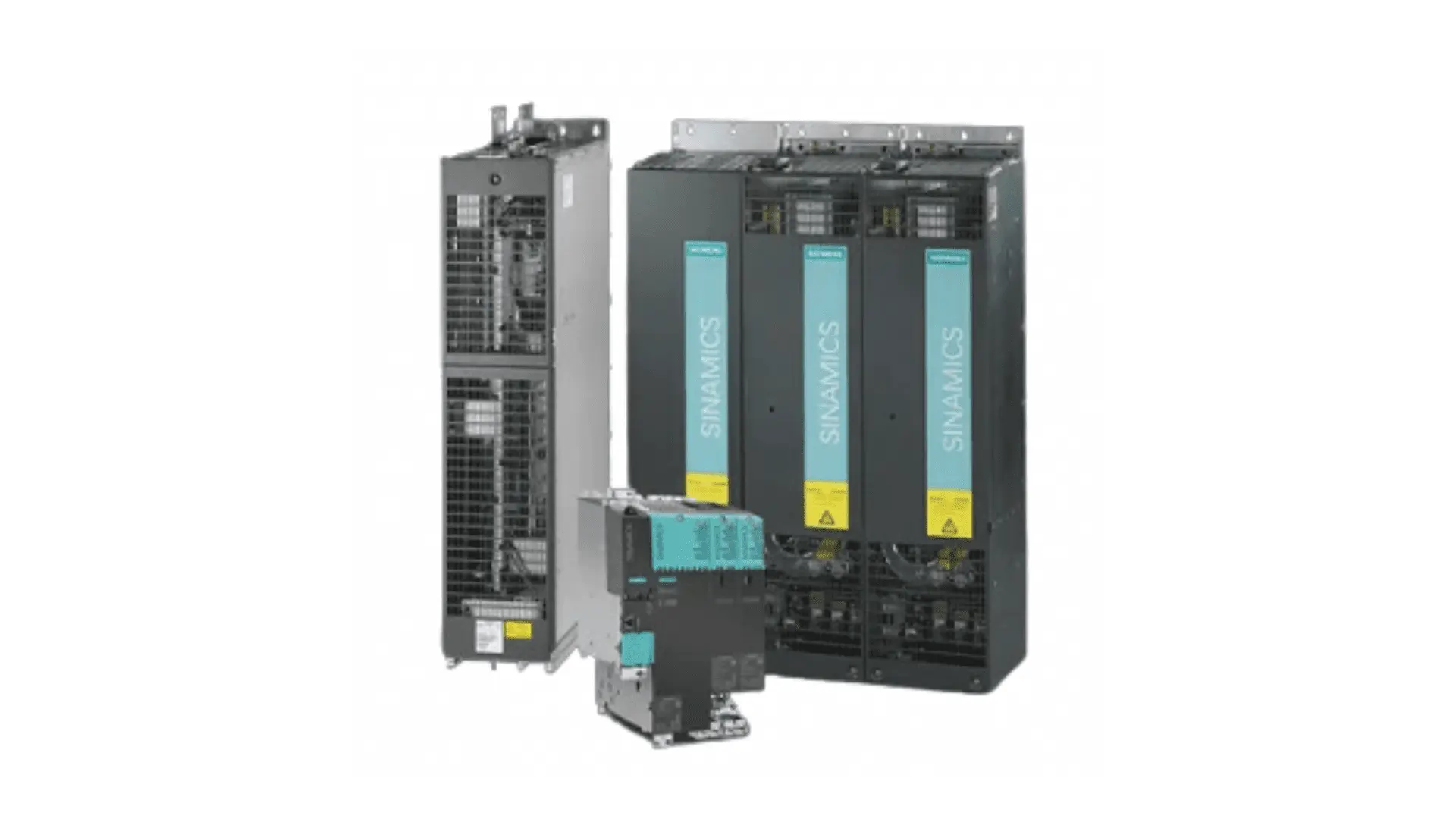

Engineered DC-DC Converter
The main part of the engineered DC-DC converter is a motor module from the SINAMCS S120 multi-axis system. It becomes a comprehensive DC-DC convertor with additional components that may be added and adjusted separately for each application.
![E (1)](https://b3355109.smushcdn.com/3355109/wp-content/uploads/2024/07/E-1-42.png?lossy=2&strip=1&webp=1)
All the information from a single source
The engineered DC-DC converters are built on the SINAMICS S120 platform, it is simple to integrate mechanically, electrically, and software-wise into the SINAMICS S120 drive line-up. This results in synergistic effects like a unified design, the use of pre-existing communication interfaces, and a uniform look and feel.
Utilizing a wealth of resources
The highly calibrated power range of the SINAMICS S120 platform allows the selection of the motor module for the engineered DC-DC convertor. This enables various cooling techniques and power requirements up to the megawatt level. There are motor modules that provide liquid and air cooling options. It is also possible to use the engineered DC-DC convertor under challenging environmental circumstances.
Highly versatile
Optimising the engineered DC-DC convertor for a given application involves choosing the appropriate motor module and related parts, including the output filter. Power, design, and voltage class flexibility enables the ideal fulfilment of unique customer requirements.

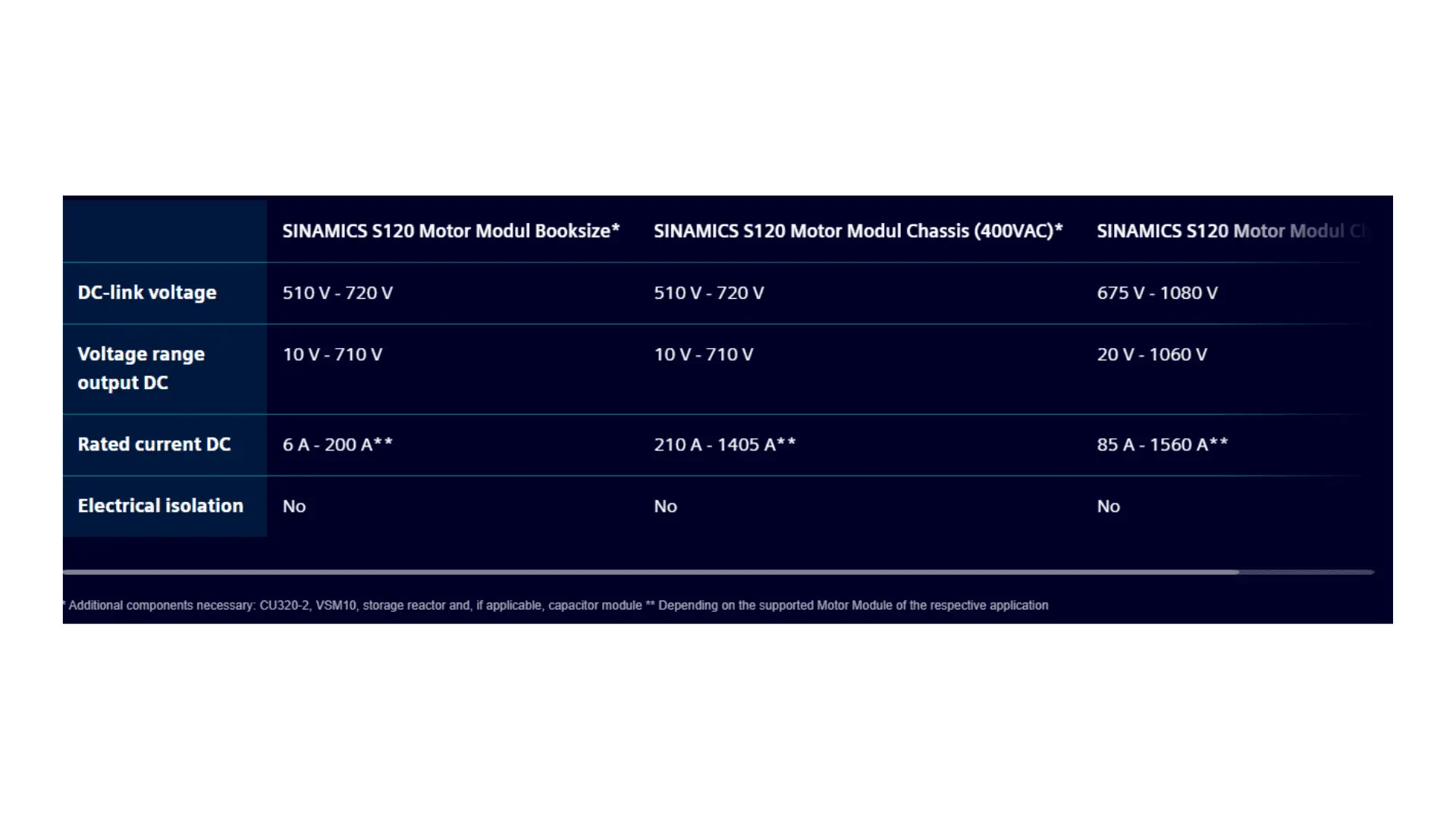

Technology overview
![E (2)](https://b3355109.smushcdn.com/3355109/wp-content/uploads/2024/07/E-2-39.png?lossy=2&strip=1&webp=1)
